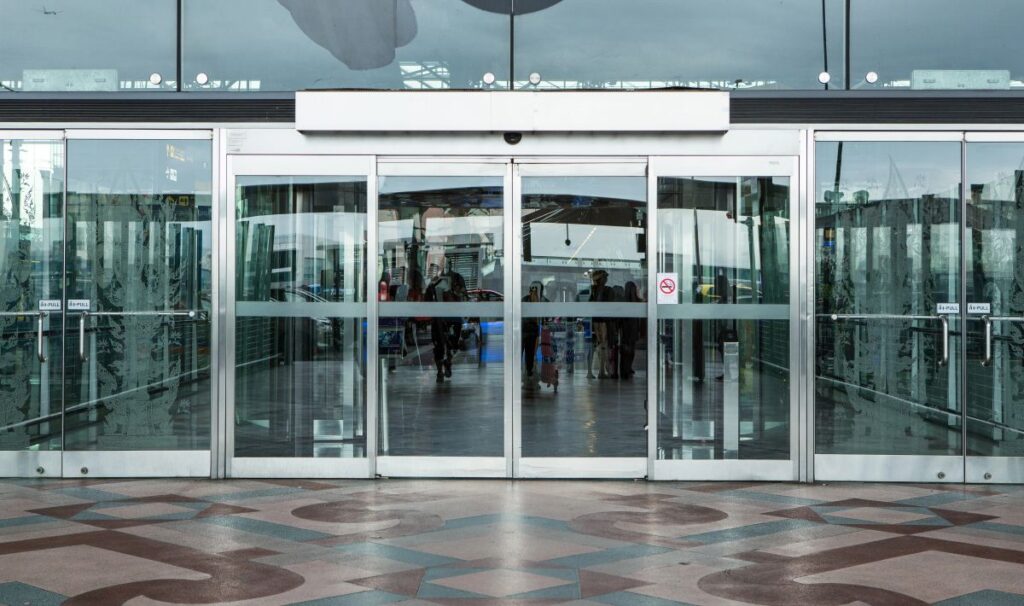

Automatic sliding doors are ubiquitous in public life, found in hospitals, airports, and retail storefronts. The device that makes those doors open and close safely and reliably is the sliding door operator. This article provides a more in-depth examination of what the operator is, its historical development, the inner workings of the header during each cycle, and the primary variants currently in use.

What is a sliding door operator?

A sliding door operator is an electromechanical system that automates the operation of a pedestrian sliding door. It is positioned in a header above the opening or within the ceiling line and typically consists of a motor and gearbox, a toothed belt or other drive mechanism, a microprocessor controller, door hangers and rollers riding on a track, guides at the floor, and a suite of activation and safety sensors. In the United States, these systems fall under ANSI/BHMA A156.10, the primary safety and performance standard for power-operated pedestrian doors, which encompasses designs such as sliding, swing, and folding doors. It is distinct from UL 325, which addresses operators for vehicular gates and similar systems, not pedestrian entrances.

A concise history

Early concepts

Devices that open doors without direct human force have been imagined for centuries. Still, the modern era began in the early 1930s when engineers Horace H. Raymond and Sheldon S. Roby of Stanley Works patented an optical, photoelectric apparatus that triggered a door to open. Contemporary documentation and the granted U.S. patent indicate that this system was in use by 1934, with a well-known installation at Wilcox’s Pier Restaurant in West Haven, Connecticut.

The sliding breakthrough

In 1954, Dee Horton and Lew Hewitt developed the first practical automatic sliding door after observing that wind loads made swinging doors unreliable on the Texas coast. They later founded Horton Automatics in 1960 to commercialize the product, which helped cement sliding operators as a mainstream entrance technology.

Sensors evolve

Activation evolved from pressure mats to microwave motion sensors and active infrared presence detection, which improve traffic flow and safety by distinguishing approach from presence at the threshold. Dual-technology heads that combine microwave technology for motion detection and infrared technology for presence detection are now common in sliding entrances.

What happens inside the header: components and control

Although models vary, most modern sliding operators share a common architecture:
1. Drive and mechanics – A compact brushless DC motor turns a gearbox that drives a reinforced timing belt, which is attached to the door carrier. This produces smooth acceleration, consistent closing force, and long service life. An encoder on the motor shaft feeds position and speed back to the controller for precise ramping, obstruction response, and door limit learning.
2. Controller – A microprocessor board manages activation inputs, door speeds, deceleration profiles, hold-open times, safety timeouts, and fault logging. Technicians program these through a keypad or service tool. Many systems support various operating modes, including Automatic, Exit-Only, Hold-Open, and Night/Locked, which can be selected from a wall switch or an integrated selector.
3. Sensors – Typical sliding entrances utilize a motion sensor positioned on the approach side and a presence sensor that safeguards the threshold and the door path. Dual-tech units combine both in a single head. Additional beams or light curtains may be used to monitor the closing edge. Safety inputs are monitored by the controller, which will hold or reopen the door if coverage is lost.
4. Power and backup – Many operators support optional battery packs that either open or close to a safe position in the event of a power failure, allowing for a limited number of cycles until power is restored.
5. Learning cycles and obstruction response – On commissioning, operators learn door mass and stroke. During service, the controller detects abnormal current or encoder feedback and will slow, stop, or reverse if an obstruction is sensed, while logging a fault for the technician.

Safety, compliance, and egress

For pedestrian installations, ANSI/BHMA A156.10 establishes the baseline for activation, safety zones, forces, signage, and other requirements. In Europe, EN 16005 covers safety in use for power-operated pedestrian doorsets, including sliding designs, with system-level requirements for monitored safety sensors and protective fields. Both standards focus on preventing impact, entrapment, and nuisance closures while ensuring reliable traffic flow.

Model building codes also require that a power-operated entrance used for exit serve as a safe egress. For sliding doors, that typically means breakout capability, where the panels and often sidelights can swing out in the direction of escape when pushed, providing a code-compliant clear width. The 2021 IBC addresses power-operated doors in Section 1010.3.2. Industry guidance explains that sliding doors used on egress paths must open to full width when subjected to force from the egress side, which is why breakout or breakaway mechanisms are commonly used on retail and healthcare entries.

*Terminology note

In A156.10, a breakaway device permits egress under emergency conditions, and breakout is the act of swinging the panel in the egress direction. These definitions underpin how inspectors and installers assess compliance.

How a cycle works

1. Activation: A motion sensor or a knowing-act input (for example, an access control relay) signals the controller.
2. Opening: The controller accelerates the motor, causing the active panels to slide across the track. If presence is detected in the path, the door will continue to open or remain open.
3. Hold time: Once no motion is detected and the presence zone is clear, the system counts down a programmable hold-open time.
4. Closing: The door closes at a set speed with monitored presence across the threshold. If a safety beam is broken or the controller detects an obstruction, the door stops, reopens, or holds as programmed.
5. Standby: Power usage and sensor vigilance drop to idle until the next cycle.
6. These steps and parameters are documented in mainstream installation and owner manuals for sliding operators.

Types and configurations

By mounting and appearance

• Overhead concealed (OHC): The operator and track are recessed into the header or ceiling pocket, providing a clean sightline and enhancing the façade’s aesthetics. Common in new construction and premium retrofits.
• Surface-applied header: Operator mounts directly to the wall or storefront frame, simplifying retrofit and service access. Many systems are convertible between surface and concealed layouts.

By panel and motion

• Single-slide or bi-parting doors are the most common; either one leaf slides to a fixed sidelight or two active leaves meet at the center.
• Telescopic systems use three or more narrower panels that stack to achieve a wider clear opening in tight frontages. Manufacturer data often cites a roughly 30 percent wider opening width compared to a standard two-panel slide in the same rough opening.

By geometry and application

• Curved or radial sliding doors offer the appearance of a revolving entrance while maintaining a barrier-free, sliding motion. Operators and tracks follow a radius, and the controller manages the curved mass.
• Hermetic sliding doors seal for pressure control and hygiene in cleanrooms, laboratories, and operating suites, utilizing specialized gaskets, frames, and guides.
• ICU/CCU hospital doors often feature large vision panels, trackless floor guidance for more effortless bed movement, and a full breakout, allowing the entire assembly to swing clear during patient transfer or emergencies.

By framing

All-glass storefront packages feature suspended tempered or laminated glass, with minimal framing and appropriately rated hardware and rails. The operator logic remains the same, but sensors and protective fields must be tuned carefully, as transparent panels invite closer approach.

Activation and safety technologies

Motion activation

Microwave radar detects approach, with adjustable range and direction sensing to reduce false triggers from passing traffic.

Presence protection

Active infrared curtains or light grids monitor the threshold and door path, ensuring the door will not close on a person or object.

Dual-technology heads

Combining microwave and infrared allows the operator to differentiate between approach and presence, maintaining safety if one channel is compromised.

Other common inputs include knowing-act devices, such as push plates or card readers, for controlled areas, and supervised safety beams across the opening. All safety channels should be monitored so that a failed sensor forces the system to a safe state rather than continuing operation.

Standards alignment in practice

• United States: Sliding door operators are designed and installed to meet the ANSI/BHMA A156.10 standards. Low-energy and power-assist swing door operators are covered in ANSI/BHMA A156.19, which is not the governing standard for sliding operators.
• Europe: EN 16005 details safety in use for power-operated pedestrian doorsets. Manufacturers commonly test sliding operators to this standard and design protective fields accordingly.
• Codes: Where used on exit paths, model codes expect power-operated doors to allow full-width egress when pushed from the egress side, which is why breakout or alternative provisions are used on sliding entrances serving assembly occupancies or retail stores.

Inspection and maintenance

Safety in the field depends on correct specification and ongoing inspection. In the U.S., the industry recommends daily owner checks and annual inspections by an AAADM-certified technician to verify activation zones, presence coverage, closing speeds, decals, and signage conform to the current standard and site use. Many manufacturers embed this guidance directly in owner manuals and labels.

Common misapplications and how to avoid them

Confusing standards

Do not apply UL 325 gate-operator rules to pedestrian sliding doors. UL 325 is written for vehicular gates and related barriers, while pedestrian sliding entrances are governed by A156.10 and building codes.

Inadequate safety fields

Transparent or high-sunlight façades often require adjusted infrared sensitivity and additional beams to maintain coverage across the full opening during close-up. Follow the sensor manufacturer’s pattern drawings and perform functional tests after any adjustment.

Skipping breakout where required

If a sliding entrance serves egress, plan for partial or complete breakout and verify the clear width and force limits conform to standards and code intent.

Summary

A sliding door operator is more than a motor in a header. It is a safety-critical system governed by well-defined standards, tuned by trained technicians, and integrated with sophisticated sensors that balance traffic flow and user protection. Historically, the leap from optical triggers in the 1930s to mat-activated sliding doors in the 1950s set the stage for today’s microprocessor-controlled, sensor-rich operators that serve millions of safe cycles in demanding environments.

If you are specifying, installing, or maintaining a sliding entrance, anchor your decisions in A156.10 or EN 16005. Tune the activation and presence fields to the real-world approach paths and test regularly. That is how these systems deliver the seamless experience people expect when they walk toward a door that seems to open by itself.
